At 824 sq ft, the Pine ADU floor plan offers 2 bedrooms and 2 baths, making it a great option for those seeking roomy accommodations with distinct living and sleeping areas. This 2 bedroom ADU floor plan provides a functional layout designed for comfort and style.

Floor Plan Details

824 SQFT

2 Bed

2 Bath

Inquire About Plan

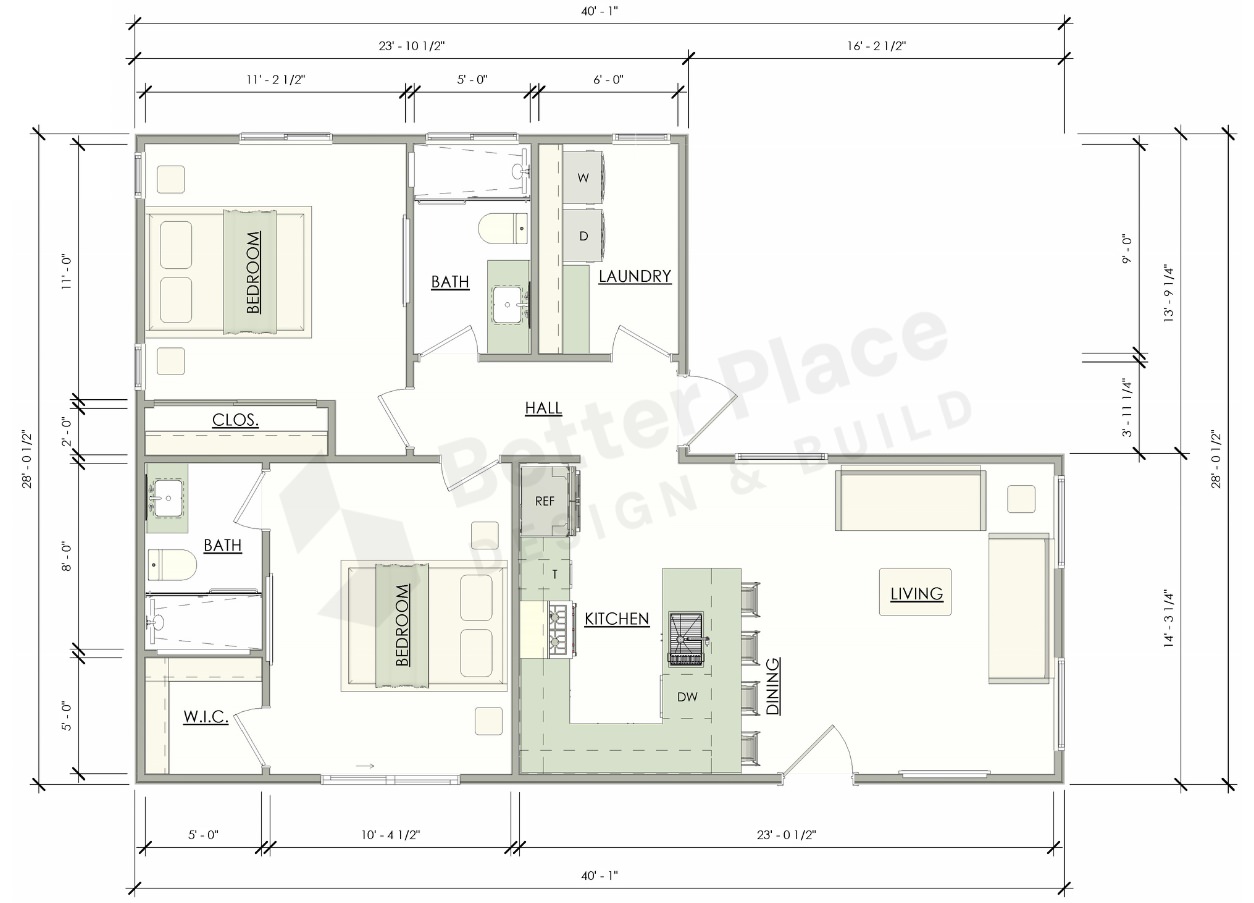

Detailed 2D floor plan of a 2 bedroom ADU featuring two bathrooms, a kitchen, living room, and a terrace. This 824 sq ft plan emphasizes a functional layout with distinct living and sleeping areas.

3D rendering of a 2 bedroom ADU showcasing a spacious layout with two bathrooms, a kitchen, living room, and a terrace. This 824 sq ft plan is ideal for comfortable living.
